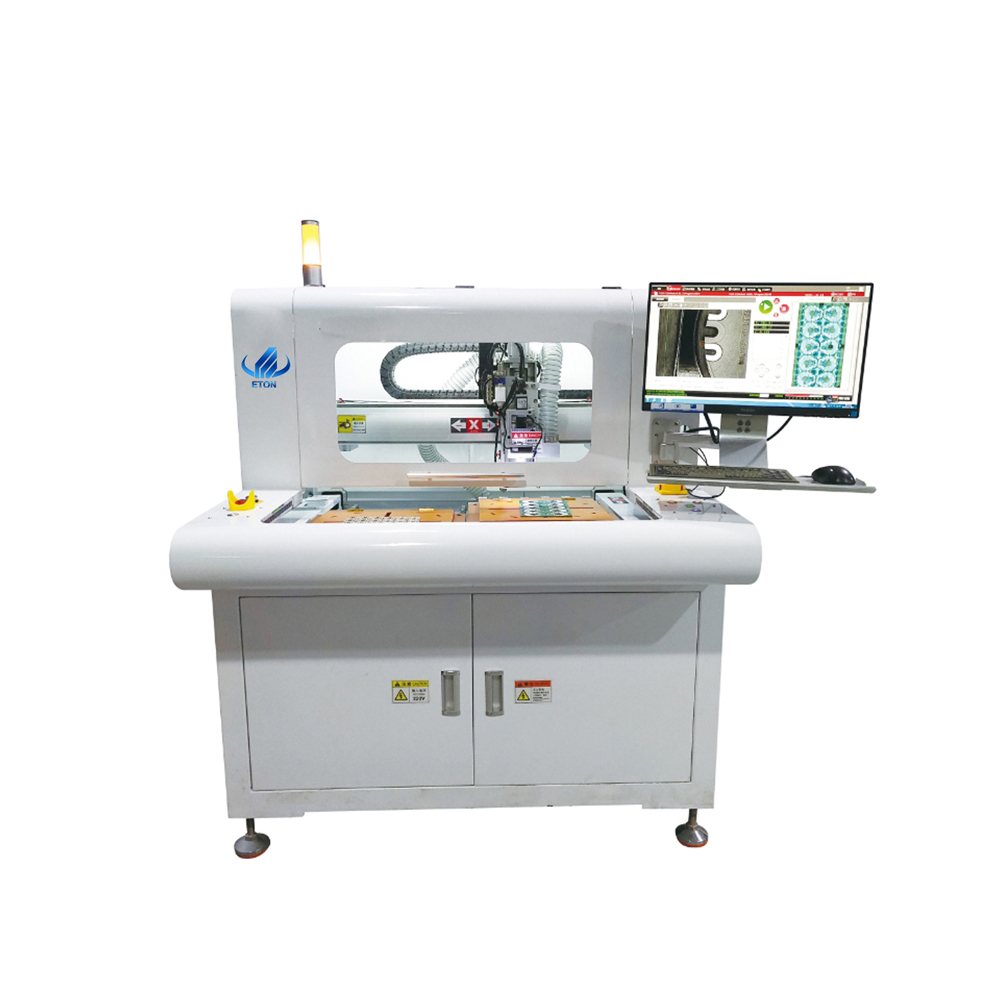

Automatic PCB Depaneling Machine for SMT Line PCB Separator

• Infrared switch is used for safety protection. When the hand or foreign object is in the blademovement area, the machine stops to ensure safe operation.
• The machine is driven by a stepper motor. It can be self-locked and precisely cut and positioned when powered on. It solves the problem that the travel point of DC and AC motors changes after working for a period of time due to inertia.
• After connecting multiple PC boards with solder, breaking often damages the circuit or breaks the electronic parts. Using this machine can avoid damage and improve work efficiency and quality.
• The above circular bladewalking and cutting can completely reduce stress, prevent cracking of solder joints and breakage of parts.
• The upper circular bladeand lower flat blade method are adopted. The PC board is placed on the lower flat blade. Once the switch is stepped on, the upper circular blade moves horizontally to the set fixed point, and the PC board is cut and divided. The cutting does not fall off and the incision is smooth.
• The upper and lower knives are imported high-speed steel. The knives are durable. When the knives are not sharp, they can be re-grinded. It can be ground about 2 times.

Thickness between the V grooves

0.25-2.0mm

PCB thickness

  0.6-3.2mm

Maximum PC board cutting length

350mm

Width of the rear baffle

150mm

Maximum PC board cutting width

150mm

Cutting speed

0-300mm/s

Maximum stroke of the blade wheel

350mm

The lower plate blade can be adjusted

0.2mm

Fine adjustment of the blade wheel

0.3mm

Power supply

single-phase AC220V 50-60HZ

Weight

45KG

Machine size

600mm * 360mm* 370mm
