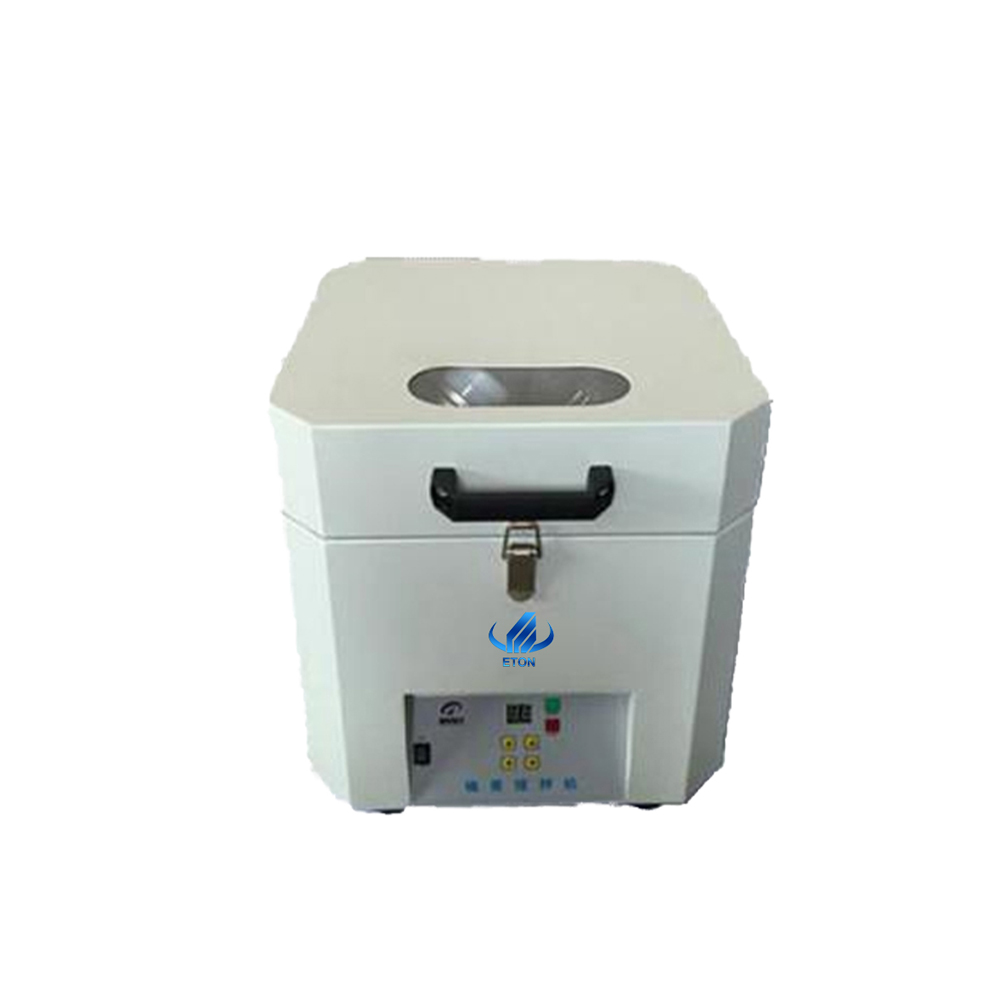

SMT Assembly LineAutomatic SMT Solder Paste Mixer
Model: ET-SPM
The SMT solder paste mixer is used to evenly mix solder paste before printing, ensuring proper viscosity and consistency. By centrifugal rotation, it prevents air bubbles, restores the paste's rheology, and ensures better soldering results. Suitable for use in any SMT production line before printing.
Machine Features
|
Machine Details
|
Item |
Solder Paste Mixer |
|
Dimension |
400x400x420mm |
|
Weight |
About 35KG |
|
Operating Voltage |
AC 220V 50Hz 60Hz >60W |
|
Operating speed |
Motor 1350 RPM revolution: 1000RPM Rotation: 500PRM |
|
Working capacity |
500G. Syringe, red plastic tube, etc. the fixture can be customized. |
|
Stir two cans of solder paste at the same time |
500G |
|
Mixed time |
1-99 minute digitally adjustable |
|
Operation method |
Light touch button for easy operation |
|
Fixture function |
Universal fixture for all kinds of brand solder paste cans |
|
Running noise |
Low running noise <20dB |
|
Model |
ET-L250 |
|
Dimension |
L1100*W860*H1200±30mm |
|
Magazine size |
L355*W320*H565mm |
|
Max. PCB size |
L330*W250mm |
|
Direction |
Right to left/Left to right |
|
Lifting platform pitch selection |
10mm，20mm，30mm，40mm |
|
Transmission height |
920±30mm |
|
Control Way |
PLC controller control |
|
Operation control panel |
Intelligent control true color touch screen |
|
power supply |
220V 50HZ |
|
Gas source |
0.4-0.6MPa |
|
Max. Number of Storage PCB |
50PCS |
|
Electric control box |
1 Set |
Application
Suitable for different industry, like:
- Consumer electronics：Mobile phones, tablets, TVs, smart watches, headphones, etc.
- Computers and communication equipment：Motherboards, network cards, switches, 5G communication modules, etc.
- Automotive electronics：Automotive LED lights, control modules (ECUs), camera modules, etc.
- Medical electronic equipment：Medical monitoring equipment, portable diagnostic instruments
- Industrial control and power equipment：PLC controllers, electric meters, industrial control boards, etc.
- LED lighting and display：DOB light source boards, LED modules, lamp bead mounting
.png?w=2147&h=985)
We provide a full range of SMT machines including pick and place machines, stencil printers, reflow ovens, conveyors, and SPI/AOI inspection equipment.
We are a professional SMT equipment manufacturer with over 15 years of experience, offering both standard and customized solutions.
Yes, our machines feature user-friendly interfaces and we provide English manuals, operation videos, and online technical support to ensure smooth operation.
Yes. We have local engineers and service office in Indai, Egypt, Turkey, Vietnam, Russia, etc. And also after machine arrive client's factory, we'll arrange engineer to client's factory to start machine installation and training.
Our machine is usually ready within 25-30 working days. But if machine have stock then we can delivery machine within 7-15 working days.
All our machines come with a 1-year warranty. Lifetime technical support is provided free of charge.
Absolutely. We provide tailored SMT solutions based on your PCB design, components, and production volume.
Normally 220V single-phase or 380V three-phase, depending on the machine type.
Of course. We can arrange a live video demo or welcome you to visit our factory for a hands-on experience.
