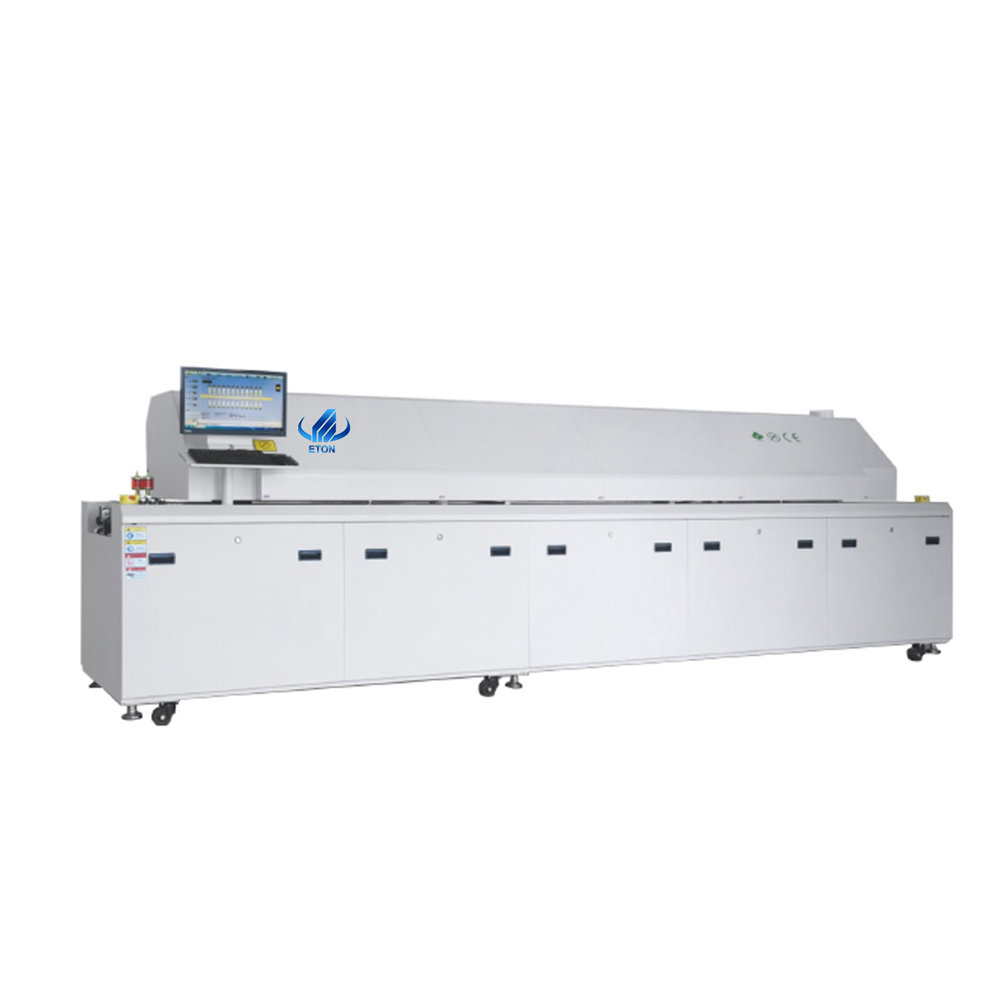

SMT Assembly Line Reflow Soldering Oven Hot Air 8 Zones Reflow Oven

Name: SMT Assembly Line Reflow Soldering Oven Hot Air 8 Zones Reflow Oven
Availability: InStock

Model: ET-R8

ETON ET-R8 reflow oven adopts the world's leading small circulation technology, the entire furnace is divided into independent areas. The temperature curve is very high when PCB welding is heated, which is very suitable for the welding of components with small lead-free process space window.

Supporting Products

Contact US

Machine Features

Turbocharged Heating System

Upper and lower independent worm gear booster heating modules, independent hot air circulation, double welding zone or three welding zone settings.
Each temperature zone adopts modular design, high temperature resistant long shaft hot air motor and high thermal energy nickel chromium heating wire. From room temperature to constant temperature in less than 20 minutes.

Reliable and Stable Transmission System

Symmetrical double-slot high-strength guide rail, surface hardening treatment, wear resistance, high temperature resistance, no deformation, and low heat absorption. Standard chain and mesh chain synchronous and equal speed parallel transportation.
The width adjustment adopts a four-stage synchronous width adjustment structure, and the two ends are equipped with a guide rail thermal expansion automatic extension device to effectively ensure the parallelism of the guide rail, prevent the occurrence of falling and stuck boards, no cleaning, and easy to adjust.
Computer-controlled automatic refueling system, which can automatically refuel according to the transportation speed and machine status, and the flow rate is adjustable.
Automatic width adjustment system, the width adjustment accuracy can reach 0.2mm.
UPS power-off protection function ensures that the PCB board can output normally and not be damaged after a sudden power failure.

Machine Details

Model	ET-R8
No. of heating zones	Top 8/ bottom 8
Heating method	Flat-surface winding heating wires on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method.
Length of heating zone	3000MM
No. of cooling zones	2
Length of cooling zone	Internal 800 + external 400MM
Mesh belt width	600MM
Rail width adjustment range	50-480MM
PCB size	50～480mm
PCB height limit	25mm
Transmission direction	L→R（Option: R→L）
Transmission method	Mesh belt+Single-lane
Transport connection height	900±20MM
PCB transport speed	0～1.8m/min
PCB temperature deviation	±2℃
Temperature control accuracy	±1-2℃ (static)
Temperature control range	Room temperature ~ 300℃ adjustable
Applicable solder type	Lead-free solder / lead-containing solder
Temperature control method	PID+SSR
Component type used	CSP、BGA、μBGA、0201chip and other single/double-sided boards
Power failure protection	UPS and delayed shutdown
Power supply	3Φ、380V、50HZ
Total power	75KW
Starting power	Unstaged starting power:72KW 2-staged starting power: 36KW
Static working power	7KW
Heating time	Approx.20min
Dimension	L5000W1400H1500±20MM
Weight	1570KG
Temperature curve system	Three-channel online curve test, intelligent analysis software, display temperature and rate
Machine body color	The whole machine is white in appearance and black in interior

Application

Suitable for different industry, like:

Consumer electronics：Mobile phones, tablets, TVs, smart watches, headphones, etc.

Computers and communication equipment：Motherboards, network cards, switches, 5G communication modules, etc.

Automotive electronics：Automotive LED lights, control modules (ECUs), camera modules, etc.

Medical electronic equipment：Medical monitoring equipment, portable diagnostic instruments

Industrial control and power equipment：PLC controllers, electric meters, industrial control boards, etc.

LED lighting and display：DOB light source boards, LED modules, lamp bead mounting
