Introduction

Before the pick-and-place machine places a single component, before the reflow oven melts a single solder joint, the stencil printer must do its job perfectly. The stencil printing process deposits solder paste onto PCB pads. If the print is wrong – too much paste, too little paste, misaligned, or smeared – no amount of placement accuracy or reflow optimization will fix it. Stencil printing is often called the "most critical" process in SMT, and for good reason: 50-70% of all SMT defects originate in the printing process. This article covers the key parameters of stencil printing: stencil design, squeegee selection, print speed, separation speed, under-clean frequency, and paste management on the stencil. Master these, and you eliminate the largest source of defects before they start.

Keywords: stencil printing, solder paste printing, SMT stencil, squeegee, print process, paste deposition, stencil cleaning, aperture design.

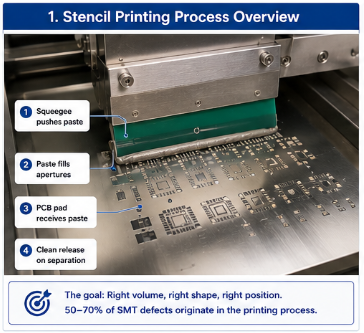

Why Stencil Printing Is Critical

The stencil printing process deposits solder paste onto PCB pads. The paste must be:

The right volume – enough to form a reliable joint, not so much that it bridges.
The right shape – a clean, defined deposit that matches the pad.
In the right position – aligned to the pad, not shifted.

If any of these conditions are not met, defects follow.

Defects traced to printing:

Solder bridging (too much paste or smeared paste)
Tombstoning (uneven paste volume on two pads)
Insufficient solder (too little paste – open joints)
Solder balls (paste spatter or misaligned deposits)
Head-in-pillow (paste volume too low to collapse BGA balls)

Printing is the first process in the SMT line. Problems here propagate through placement and reflow, making root cause analysis difficult. Get printing right, and many downstream problems disappear.

Stencil Design Basics

The stencil is a thin sheet of metal (typically stainless steel) with apertures (holes) cut where solder paste should be deposited.

Stencil thickness:

Pitch / Component Type	Typical Thickness
Standard components (0.5mm pitch and above)	0.15mm (6 mil)
Fine pitch (0.4mm)	0.12mm (5 mil)
Ultra-fine pitch (0.3mm)	0.10mm (4 mil)
Large components (connectors, BGAs)	0.18-0.20mm (7-8 mil)

Area ratio is the most important stencil design parameter. It is the aperture area divided by the aperture wall area. A higher area ratio means paste releases more easily.

Target area ratio: >0.66
Below 0.66: Paste release becomes unreliable
For 0.4mm pitch and below: Area ratio often falls below 0.66 – requires laser-cut stencils and careful process control

Aperture shape:

Square or round – Best for most components
Home-plate shape – For fine-pitch QFPs and BGAs (reduces paste volume on inner rows)
Slot – For large components like connectors

Nano-coating: A coating applied to the bottom of the stencil to improve paste release. Particularly helpful for fine-pitch printing. Expect to pay more, but the defect reduction often justifies the cost.

Squeegee Selection and Setup

The squeegee pushes paste across the stencil, forcing it into the apertures.

Metal squeegees:

Hard, durable, consistent
Best for high-volume production
Less forgiving of uneven stencil or PCB surfaces

Polyurethane (plastic) squeegees:

Softer, conforms to variations
Good for prototypes and low-volume
Wear out faster (replace every 10,000-20,000 prints)

Squeegee parameters:

Parameter	Typical Range	Effect
Material	Metal (stainless steel) or polyurethane	Metal = consistent; polyurethane = conforming
Hardness (polyurethane)	70-90 Shore A	Softer = better fill, faster wear
Angle	45-60 degrees (fixed on most printers)	Steeper = less paste in apertures
Pressure	5-15 kg per 100mm of blade length	Higher = cleaner stencil but more wear

General guidelines:

Start with manufacturer's recommended pressure for your stencil length.
Use the lowest pressure that cleans the stencil between prints.
Increase pressure if paste is not filling apertures.
Decrease pressure if paste is squeezing under the stencil (smearing).

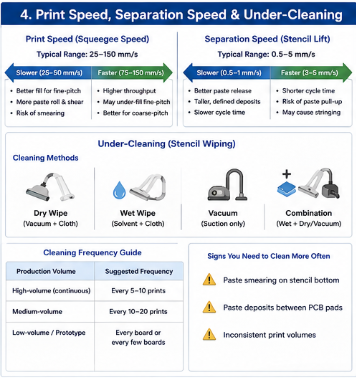

Print Speed

Print speed affects how well paste fills apertures.

Typical range: 25-150 mm/s (1-6 inches per second)

Slower speeds (25-50 mm/s):

Better paste fill for fine-pitch apertures
More time for paste to roll and shear
May cause paste to stick to stencil bottom (smearing)

Faster speeds (75-150 mm/s):

Higher throughput
May under-fill fine-pitch apertures
Better for coarse-pitch components

Guideline: Use slower speeds for fine-pitch (0.4mm and below). Use faster speeds for coarse-pitch (0.5mm and above) where throughput matters.

Separation Speed

After printing, the stencil must separate from the PCB. This is a critical moment – the paste must release from the stencil and stay on the PCB pad.

Typical separation speed: 0.5-5 mm/s

Slower separation (0.5-1 mm/s):

Better paste release (paste has time to detach cleanly)
Produces taller, more defined deposits
Slower cycle time

Faster separation (3-5 mm/s):

Shorter cycle time
Paste may string or pull away from pads
Risk of "stencil pull-up" – paste lifted off pads

Guideline: Use slower separation for fine-pitch and small components. Use faster separation for large components where paste volume is higher and release is easier.

Zero-speed separation (stencil lifts vertically after a pause) is an option on some printers – excellent paste release but slower cycle time.

Under-Cleaning (Stencil Wiping)

As paste prints, it can accumulate on the bottom of the stencil (under-side contamination). This causes smearing and paste deposits where they don't belong.

Cleaning methods:

Method	Description	Best for
Dry wipe	Vacuum + cloth, no solvent	Removing dry paste
Wet wipe	Solvent applied to cloth before wiping	Removing sticky residue
Vacuum	Suction only	Quick cleaning between prints
Combination	Wet then dry or dry then vacuum	Most effective

Cleaning frequency:

Production Volume	Suggested Frequency
High-volume (continuous)	Every 5-10 prints
Medium-volume	Every 10-20 prints
Low-volume / prototype	Every board or every few boards

Signs you need to clean more often:

Paste smearing visible on the stencil bottom
Paste deposits between pads on the PCB
Inconsistent print volumes (some pads full, some empty)

Paste Management on the Stencil

Solder paste on the stencil is a living material. It dries out, separates, and changes viscosity.

Maintain a paste roll:

Keep a roll of paste in front of the squeegee (diameter roughly 1-2 cm).
If the roll breaks or disappears, add fresh paste.
Do not let paste dry on the stencil.

Stencil life (open time):

Standard no-clean paste: 4-8 hours
Extended-life paste: 8-12 hours
Water-washable paste: 2-4 hours

After stencil life expires, paste on the stencil should be removed, the stencil cleaned, and fresh paste loaded.

Do not: Mix fresh paste with old paste on the stencil. The old paste has lost solvents and activators; mixing it contaminates the fresh paste.

Print Inspection – SPI (Solder Paste Inspection)

Automated Solder Paste Inspection (SPI) measures paste volume, height, and area on every pad. It is the most powerful tool for printing process control.

What SPI measures:

Parameter	Good Range	What It Detects
Volume	70-130% of stencil aperture volume	Too much or too little paste
Height	60-120% of stencil thickness	Bridge risk or insufficient fill
Area	80-120% of aperture area	Missing paste or smearing
Offset	<25% of pad width	Misalignment

SPI feedback loop: Modern SPI systems can send correction data to the printer automatically – adjusting alignment, pressure, or cleaning frequency. This closed-loop control reduces defects significantly.

If you don't have SPI, visual inspection of printed boards under magnification is better than nothing – but SPI is one of the highest-ROI investments in SMT.

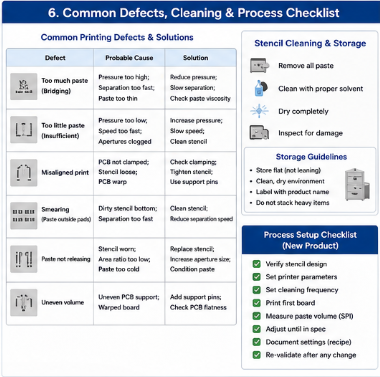

Common Printing Defects and Solutions

Defect	Probable Cause	Solution
Too much paste (bridging)	Pressure too high; separation too fast; paste too thin	Reduce pressure; slow separation; check paste viscosity
Too little paste	Pressure too low; speed too fast; apertures clogged	Increase pressure; slow speed; clean stencil
Misaligned print	PCB not clamped; stencil loose; PCB warp	Check clamping; tighten stencil; use vacuum support pins
Smearing (paste outside pads)	Dirty stencil bottom; separation too fast	Clean stencil; reduce separation speed
Paste not releasing	Stencil worn; area ratio too low; paste too cold	Replace stencil; increase aperture size; condition paste
Uneven paste volume across board	Uneven PCB support; warped board	Add support pins; check PCB flatness

Stencil Cleaning and Storage

A clean stencil prints better and lasts longer.

After each use:

Remove all paste from the stencil
Clean with appropriate solvent (manufacturer-recommended)
Dry completely before storage
Inspect for damage (torn foil, bent frame, blocked apertures)

Stencil storage:

Store flat (not leaning against a wall – warps the frame)
In a clean, dry location
Label with product name and aperture pattern
Do not stack heavy objects on stencils

Stencil life: A well-maintained stencil can last for 10,000-50,000 prints. When apertures become worn (rounded edges), paste release degrades – replace the stencil.

Process Setup Checklist for a New Product

Verify stencil design – thickness, aperture sizes, area ratio >0.66.
Set printer parameters – squeegee pressure, print speed, separation speed (start with manufacturer recommendations).
Set cleaning frequency – based on expected paste behavior.
Print first board – inspect visually or with SPI.
Measure paste volume – adjust parameters until within spec.
Document final settings – save as recipe for this product.
Re-validate – after any change (new paste lot, new stencil, printer maintenance).

Conclusion

Stencil printing is the most critical process in SMT assembly. 50-70% of all defects originate here. But the printing process is also highly controllable. By mastering stencil design, squeegee setup, print speed, separation speed, under-cleaning frequency, and paste management, you can eliminate the majority of defects before they reach placement or reflow.

If you only have time to optimize one process on your SMT line, make it printing. Invest in a good stencil (laser-cut, nano-coated for fine-pitch). Use SPI if possible. Train your operators to recognize good prints. And document your settings for each product.

The printing process is where SMT quality begins. Get it right, and everything that follows becomes much easier.
